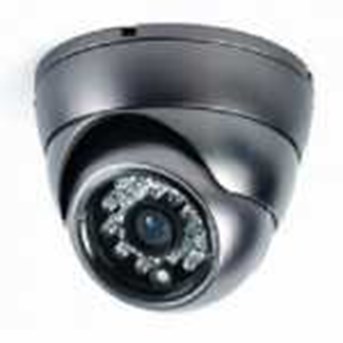

Detail Paket P1 16 Channel Hi-End CCTV-Surveillance Camera
Perlengkapan kamera pengintai dgn 16 kamera ( 8 included paket, 8 optional) :
DVR hi-end 16 kanal, dgn kombinasi 2 hi-res outdoor + 6 hi-res indoor metal casing camera
DVR bisa di akses/ lihat dari mana saja lewat internet, dgn menggunakan HP, laptop atau tablet
CCTV-kamera dilengkapi dengan IrDA/ Infra Red, sehingga dalam kondisi gelap ( tanpa penerangan) bisa menangkap gambar
Kapasitas simpan data/ rekam gambar 500GB hard drive
Jarak fokus masing2 kamera: 25m - 30m
Dilengkapi SONY CCD chipset
Kamera dilengkapi dgn resolusi tinggi dan waterproof metal casing
Include 100m signal cable dan 8 set BNC connector
Belum termasuk: ongkos pasang bila instalasi dilakukan oleh team kami, serta kelebihan pemakaian kabel signal dan jalur daya untuk masing2 kamera
Spec DVR:
Video
Video System NTSC / PAL ( auto detection)
Video Compression Format H.264
Video Input 16 Channels ( Composite video signal 1 Vp-p 75 BNC)
Video Loop Out 16 Channels ( Composite video signal 1 Vp-p 75
Video Output ( BNC) , Main Monitor For stable display
Video Output ( BNC) , Call Monitor For sequence display
Video Output ( VGA) Built-in VGA interface for LCD monitor( output resolution up to 1600 x 1200)
Audio
Audio Input 4 Channels ( Mono)
Audio Output 2 Channel ( Mono)
Record & Backup
Multiplex Operating Supports live display, recording, playback, backup, and network simultaneously
Maximum Recording Rate( Frame) 60 IPS @ 704 480 / 50 IPS @ 704 576
Maximum Recording Rate( Field) 120 IPS @ 704 240 / 100 IPS @ 704 288
Maximum Recording Rate( CIF) 240 IPS @ 360 240 / 200 IPS @ 360 288
Recording Mode Manual / Timer / Motion / Alarm / Remote
Recording Quality Options Super Best, Best, High & Normal
Pre-alarm Recording YES ( 8 MB)
HDD Type SATA
HDD Storage* * Up to two HDDs
HDD Quick Cleaning Deletes HDD Data Efficiently ( 1TB within 2 seconds)
Quick Search Time / Motion / Alarm search mode
USB Flash Drive Backup YES
DVD Writer Backup NO
Playback on PC Windows Media Player compatible
Network Transfer Format H.264
Network
Ethernet 10/ 100 Base-T
Network Protocol TCP/ IP, PPPOE, DHCP and DDNS ( Dynamic IP)
Network Surveillance Interface Licensed software " Video Viewer" / Internet Explorer or Mozilla Firefox web browser / QuickTime player
Remote Independent Operation YES
Network Alarm Notification E-mail and FTP server
CMS ( Central Management System) YES ( Maximum: 16 different IP addresses)
R.E.T.R. ( Remote Event Trigger Recording) YES
General
Operating System for Network Function Windows Vista / XP / 2000; Apple MAC
IR Remote Control YES
Multilingual OSD YES
Motion Detection Area 16 12 grids per channel
Motion Detection Sensitivity Four adjustable parameters for accurate detection
PTZ Camera Control YES ( Pelco-D & Pelco-P)
External Alarm 8 inputs, 1 output
Picture Zoom 2X digital zoom
Key Lock ( Password Protection) YES
Video Loss Detection YES
Camera Title Up to 6 letters
Video Adjustable Hue / Color / Contrast / Brightness
Date Display Format YY/ MM/ DD, DD/ MM/ YY, MM/ DD/ YY
Daylight Saving YES
Power Source( 10% ) DC 19V
Power Consumption( 10% ) < 64 W
Operating Temperature 10 ~ 40 ( 50 ~ 104 )
Dimensions( mm) * * 432( W) 90( H) 326( D)
System Recovery System auto recovery after power failure
Garansi 1 tahun all product
